Pipe Forming Fiberglass Products

Pipe Forming Fiberglass Forming Products
Home Pipe forming fiberglass products

271/ Assembled Roving for chopping for continuous filament winding pipes

271-

Product description

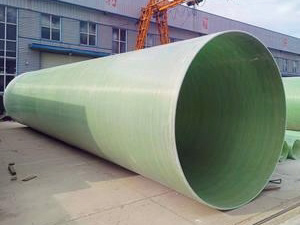

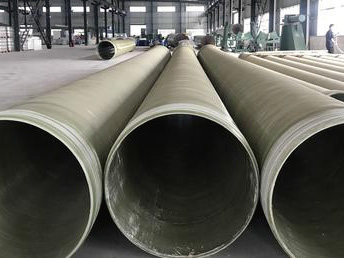

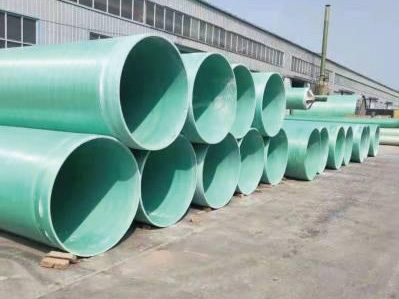

271 is primarily used in the chopping for continuous filament winding process of FRP pipes, with a surface coated with a special silane-based sizing agent that is compatible with unsaturated polyester and vinyl ester resins. The FRP products exhibit excellent water resistance and superior chemical corrosion resistance, making them mainly suitable for manufacturing large-diameter FRP pipes.

Glass typeECR
Sizing typeSilane
Typical filament diameter(㎛)13
Typical linear density(tex)2400
ExampleECR13-2400-271

Technical Parameters

ItemLinear density variationMoisture contentCombustible contentStiffness
Unit㎛%%(mm)
Test methodISO 1889ISO 3344ISO 1887ISO 3341
Standard range2400±120≤0.100.80±0.10130±10
271-
271
271--

Product features

Group 274 (3)
Coated with silane-based sizing.
Group 274 (4)
Less fuzz, low static electricity.
Group 274 (5)
Good choppability, good dispersibility, and good compatible with resin.
Group 274 (6)
Fast wet-out and tightly bonded with resin.
Group 274 (7)
Uniform linear density and excellent mechanical properties.

Instructions

Optimal use within 6 months. Store in original packaging until use. Handle with care to prevent fuzzing or damage. Before use, acclimate the roving to ambient temperature and humidity, and maintain operating temperatures between 5°C and 30°C. Ensure even tension control during operation. Regularly maintain the blade and rubber rollers.

Packaging

Each bobbin is packed in PE film or a PVC bag, then placed on pallets or in cartons. A pallet holds 48 or 64 bobbins (14-20kg each), with customizable weight. Stacking limit: 2 layers for pallets, 5 for cartons. Packaging can be tailored to user needs.

Storage

Stored in a dry, cool, well-ventilated area (5°C–35°C, 35%-65% RH). Keep packaging sealed when not in use to prevent moisture. For safety and product integrity, stack pallets no higher than three layers—handle upper pallets with care when stacking. Custom packaging available upon request.

抠图 (2)

818/ Direct roving for winding and pultrusion

Product description

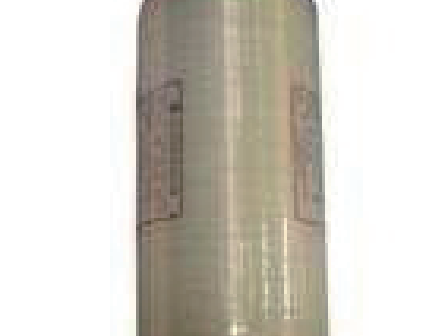

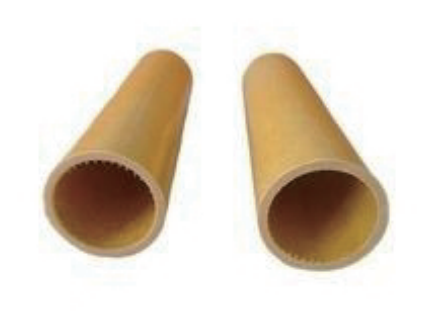

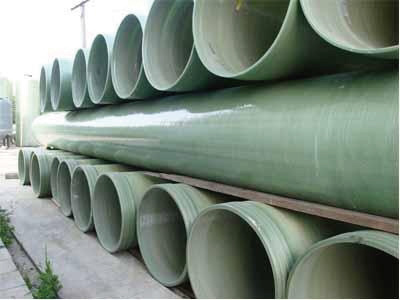

818 is a versatile roving for winding and pultrusion applications, primarily suitable for reinforcing unsaturated polyester resins, vinyl resins, and epoxy resins. It is characterized by stable linear density, high filament strength, excellent heat resistance, good wear resistance, and low fuzz. The resulting products exhibit high mechanical strength, making it ideal for manufacturing various fiberglass products such as pipes and low-pressure vessels.

Glass typeECR
Sizing typeSilane
Typical filament diameter(㎛)1817242831
Typical linear density(tex)15001700/ 24002400/480072009600
ExampleECDR24-2400-818
818-

Technical Parameters

ItemLinear density variationMoisture contentCombustible contentBreakage strength
Unit㎛%%(N/tex)
Test methodISO 1889ISO 3344ISO 1887ISO 3341
Standard range± 4≤0.100.35~0.65≥0.30
4
818
5

Product features

Group 275
Stable linear density and high filament strength.
Group 274 (8)
Excellent weavability.
Group 274 (9)
High temperature resistance, good wear resistance, low fuzz.
Group 274 (10)
Fast wet out, good compatibility with resin.
Group 274 (11)
Good mechanical properties of parts.

Instructions

Best used within 12 months; store in original packaging before use.

Control tension properly and maintain uniformity during operation.

Packaging

Each bobbin is packed in PE film or a PVC bag, then placed on pallets or in cartons. A pallet holds 48 or 64 bobbins (14-20kg each), with customizable weight. Stacking limit: 2 layers for pallets, 5 for cartons. Packaging can be tailored to user needs.

Storage

Stored in a dry, cool, well-ventilated area (5°C–35°C, 35%-75% RH). Keep packaging sealed when not in use to prevent moisture. For safety and product integrity, stack pallets no higher than three layers—handle upper pallets with care when stacking. Custom packaging available upon request.

抠图 (2)

850/ Direct Roving for Epoxy Filament Winding

850-

Product description

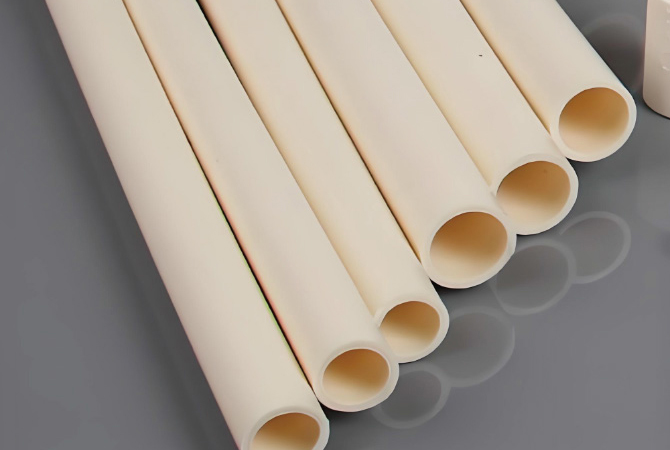

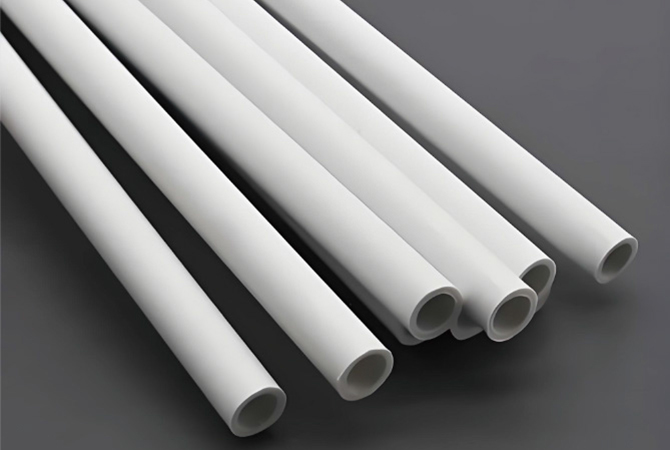

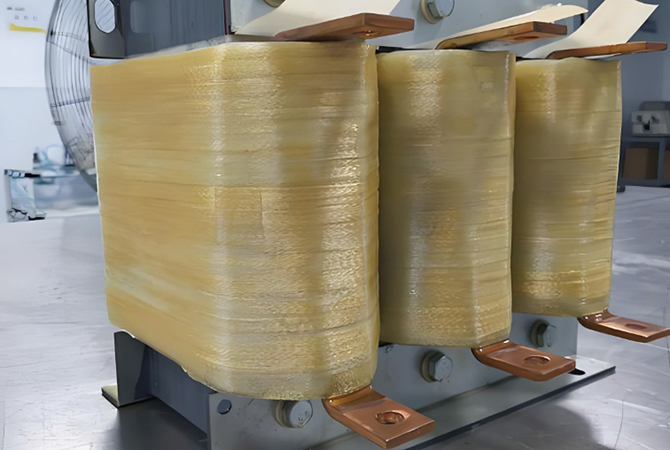

850 is an alkali-free direct roving for epoxy filament winding, manufactured using ECR glass. It offers excellent wetting properties, ensuring full compatibility with epoxy resin. The resulting composite exhibits high mechanical strength, superior electrical insulation, and outstanding fatigue resistance, making it ideal for applications such as insulating hollow tubes and reactors.

Glass typeECR
Sizing typeSilane
Typical filament diameter(㎛)16, 24
Typical linear density(tex)600, 1200, 2400, 4800
ExampleECDR16-1200-850

Technical Parameters

ItemLinear density variationMoisture contentCombustible contentBreakage strength
Unit㎛%%(N/tex)
Test methodISO 1889ISO 3344ISO 1887ISO 3341
Standard range± 4≤0.100.55±0.20≥0.40
850--
850
850-

Product features

Group 274 (12)
Suitable for high-speed, high-tension winding processes.
Group 275 (1)
Excellent electrical insulation properties and high mechanical strength.
Group 274 (13)
Excellent chemical corrosion resistance.

Instructions

1. Best used within 12 months; store in original packaging before use.

2. Follow the "first in, first out" rule to prevent prolonged storage from causing poor dispersion, caking, or fuzziness.

3. Do not mix different product grades. Technical support is required for blending. Before use, acclimate yarn to ambient conditions. Recommended environment: 15°C–30°C, 60%±15% humidity.

Packaging

1. Each bobbin is packed in PE film or a PVC bag, then placed on pallets or in cartons.

2. A pallet holds 48 or 64 bobbins (17-18kg each), with customizable weight.

Storage

1. Stored in a dry, cool, well-ventilated area (10°C–35°C, 60%±15% RH).

2. Keep packaging sealed when not in use to prevent moisture.

3. For safety and product integrity, stack pallets no higher than three layers—handle upper pallets with care when stacking. Custom packaging available upon request.
