General Fiberglass Products

General purpose glass fiber products
Home General fiberglass products

810/ Direct roving for weaving

810-

Product description

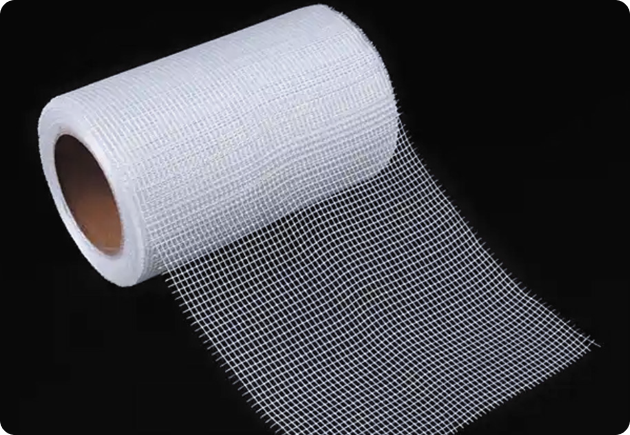

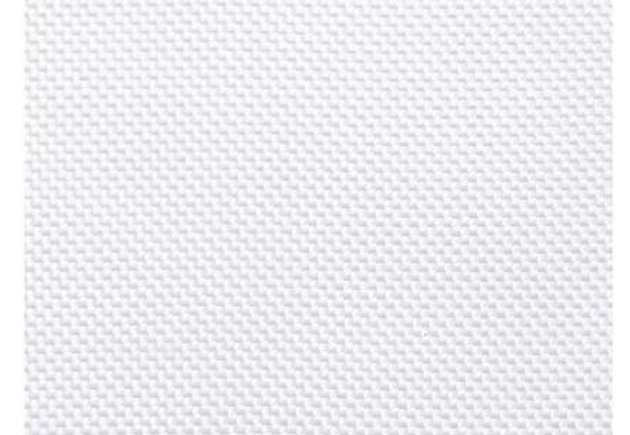

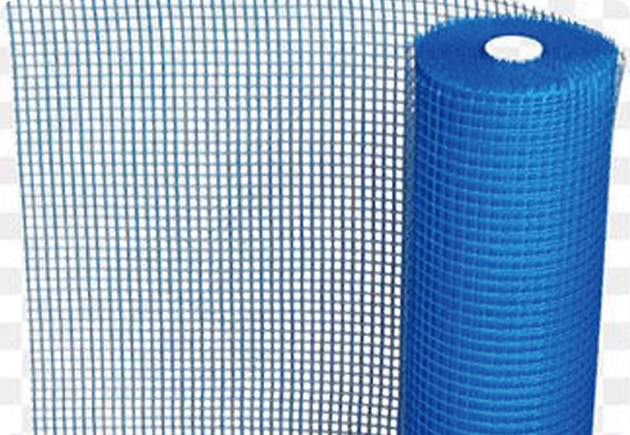

The 810 is a general direct roving for weaving, suitable for unsaturated polyester resin, vinyl resins, epoxy resins, and more. It offers excellent weaving performance and can be used to produce various fiberglass products, such as multiaxial fabrics, mesh, geotextiles, low-weight specialty fabrics, and woven roving.

Glass typeECR
Sizing typeSilane
Typical filament diameter(㎛)13141617
Typical linear density(tex)200/300230600/1200800
ExampleECDR13-300-810

Technical Parameters

ItemLinear density variationMoisture contentCombustible contentBreakage strength
Unit㎛%%(N/Tex)
Test methodISO 1889ISO 3344ISO 1887ISO 3341
Standard range±4≤0.100.40~0.70≥0.4
3
2

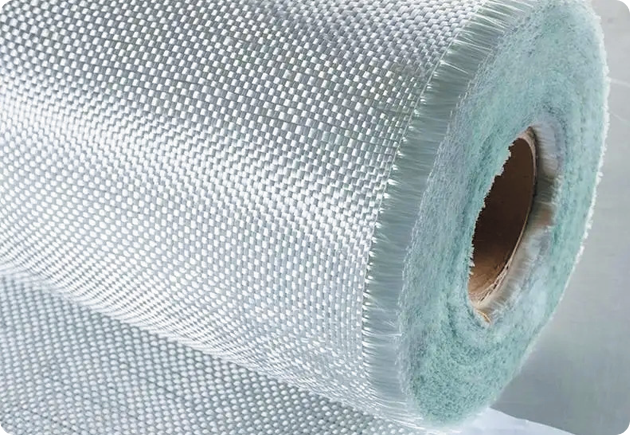

1

Product features

Group 274 (3)
Stable linear density and high filament strength.
Group 274 (4)
Excellent weavability.
Group 274 (5)
High temperature resistance, good wear resistance, low fuzz.
Group 274 (6)
Fast wet out, good compatibility with resin.
Group 274 (7)
Good mechanical properties
of parts.

Instructions

Best used within 12 months; store in original packaging before use.

Control tension properly and maintain uniformity during operation.

Packaging

Each bobbin is packed in PE film or a PVC bag, then placed on pallets or in cartons. A pallet holds 48 or 64 bobbins (14-20kg each), with customizable weight. Stacking limit: 2 layers for pallets, 5 for cartons. Packaging can be tailored to user needs.

Storage

Stored in a dry, cool, well-ventilated area (5°C–35°C, 35%-75% RH). Keep packaging sealed when not in use to prevent moisture. For safety and product integrity, stack pallets no higher than three layers—handle upper pallets with care when stacking. Custom packaging available upon request.

抠图 (2)

816H/ High speed direct roving for weaving

831-

Product description

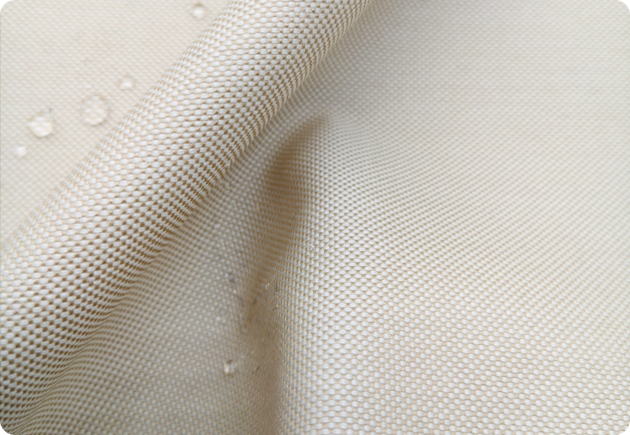

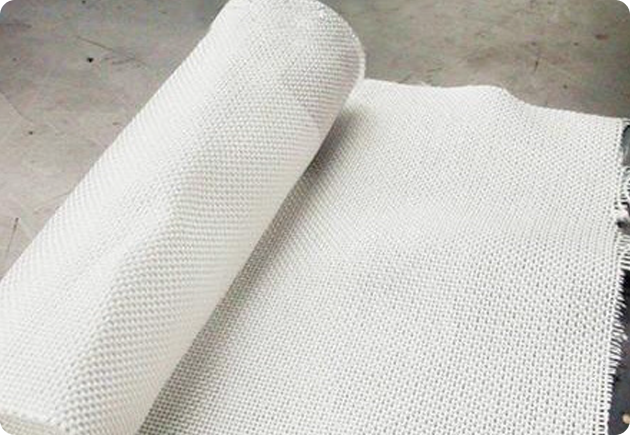

It is a high-speed woven direct roving for weaving. It is suitable for reinforcing polyester resin, vinyl resin, epoxy resin, etc. It has excellent weaving performance and can be used to produce various glass fiber products, such as multi axial fabrics, composite fabrics, warp knitting machines, mesh, geotextiles, low weight special fabrics, and woven roving.

Glass typeECR
Sizing typeSilane
Typical filament diameter(㎛)13141617
Typical linear density(tex)200/300230600/1200800
ExampleECDR13-300-816H

Technical indicators

projectlinear density deviationMoisture contentCombustible contentstiffness
unit㎛%%(mm)
Detection methodISO 1889ISO 3344ISO 1887ISO 3341
index± 4≤0.100.40~0.70≥0.45
6
4
5

Product features

Group 275
Stable linear density and high filament strength.
Group 274 (8)
Excellent weavability.
Group 274 (9)
High temperature resistance, good wear resistance, low fuzz.
Group 274 (10)
Fast wet out, good compatibility with resin.
Group 274 (11)
Good mechanical properties
of parts.

Instructions

Best used within 12 months; store in original packaging before use.

Best used within 12 months; store in original packaging before use.

Packaging

Each bobbin is packed in PE film or a PVC bag, then placed on pallets or in cartons. A pallet holds 48 or 64 bobbins (14-20kg each), with customizable weight. Stacking limit: 2 layers for pallets, 5 for cartons. Packaging can be tailored to user needs.

Storage

Stored in a dry, cool, well-ventilated area (5°C–35°C, 35%-75% RH). Keep packaging sealed when not in use to prevent moisture. For safety and product integrity, stack pallets no higher than three layers—handle upper pallets with care when stacking. Custom packaging available upon request.

抠图 (2)

911/ Assembled Roving for Chopping

911-

Product description

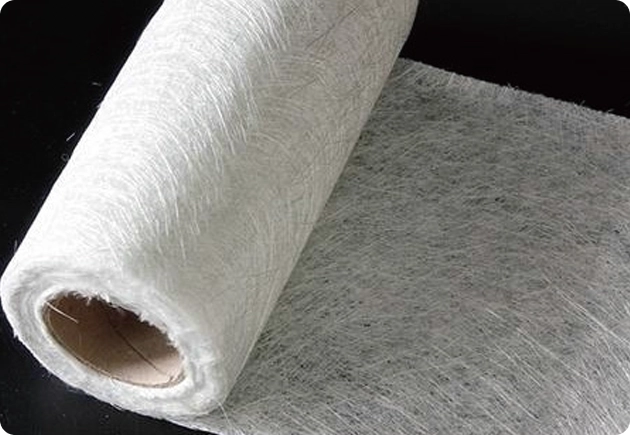

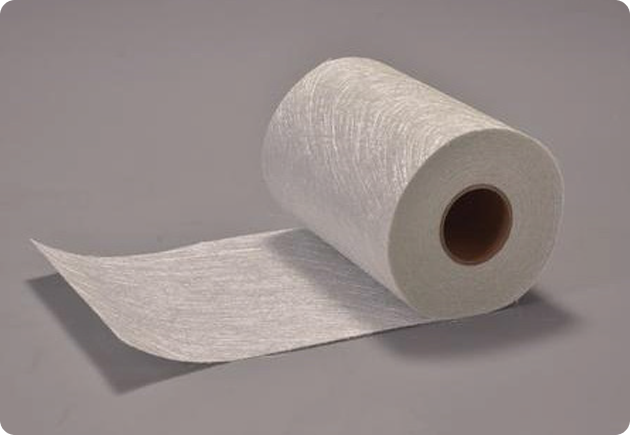

911 is assembled roving designed for chopped strand mats, specifically used for producing powder and emulsion binder chopped strand mats. It features excellent choppability and dispersibility, with good compatibility with unsaturated polyester resins and vinyl ester resins. This roving is suitable for manufacturing conventional powder and emulsion binder chopped strand mats.

Glass typeECR
Sizing typeSilane
Typical filament diameter(㎛)13
Typical linear density(tex)2400
ExampleECR13-2400-911

Technical indicators

projectlinear density deviationMoisture contentCombustible contentstiffness
unit㎛%%(mm)
Detection methodISO 1889ISO 3344ISO 1887ISO 3341
index±5≤0.100.35~0.65120±20
f8b483d7-ec80-4031-87df-9fca4baa4f47
7

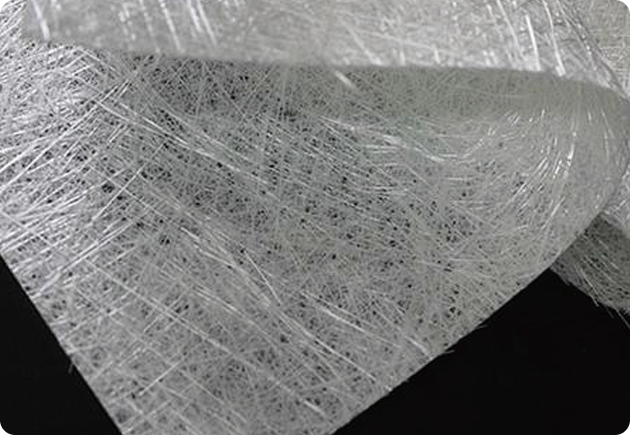

8

Product features

Group 274 (12)
Excellet choppability and dispersibility.
Group 275 (1)
Good anti-static properties.
Group 274 (13)
Fast wet-out.

Instructions

Optimal use within 6 months. Store in original packaging until use. Handle with care to prevent fuzzing or damage. Before use, acclimate the roving to ambient temperature and humidity, and maintain operating temperatures between 5°C and 30°C. Ensure even tension control during operation. Regularly maintain the blade and rubber rollers.

Packaging

Each bobbin is packed in PE film or a PVC bag, then placed on pallets or in cartons. A pallet holds 48 or 64 bobbins (14-20kg each), with customizable weight. Stacking limit: 2 layers for pallets, 5 for cartons. Packaging can be tailored to user needs.

Storage

Stored in a dry, cool, well-ventilated area (5°C–35°C, 35%-65% RH). Keep packaging sealed when not in use to prevent moisture. For safety and product integrity, stack pallets no higher than three layers—handle upper pallets with care when stacking. Custom packaging available upon request.
